SEASON 2025
BRAKES Magura MT7, Hydr. Disc Brake (203/203)
CASSETTE Sram XS-1275, 10-52T
CHAIN Sram GX Eagle™ Transmission
CRANKSET ACID MTB Hybrid Pro, 36T

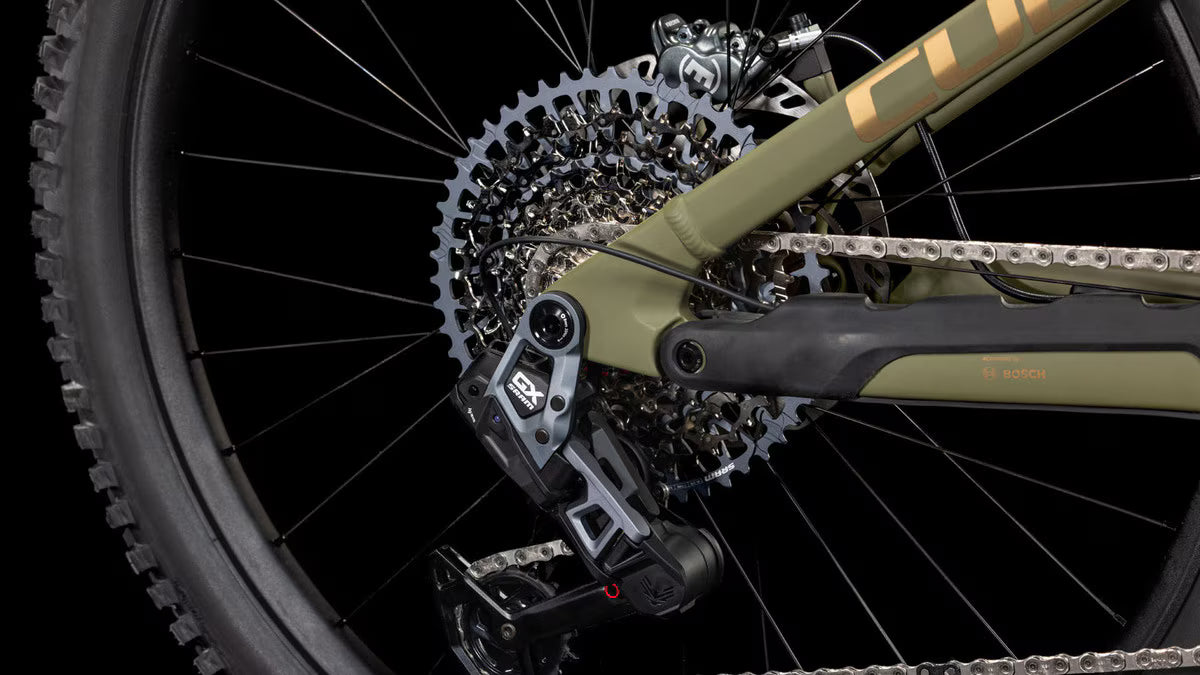

DERAILLEUR REAR Sram GX Eagle AXS™ Transmission, 12-Speed
FORK Fox 38 Float GRIP, 3-Position w/Micro Adjust, Tapered, 15x110mm, E-Bike Optimized, 170mm
FRAME C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
GRIP ACID Disrupt, Soft Compound
HANDLEBAR CUBE Rise Trail Bar 35
HANDLEBAR STEM CUBE Performance Stem E-MTB 35, FPI-Link
HEADSET ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
RIM Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
SADDLE ACID Venec EMTB Trail 140
SEAT POST CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
SHIFTERS Sram AXS™ Pod Controller

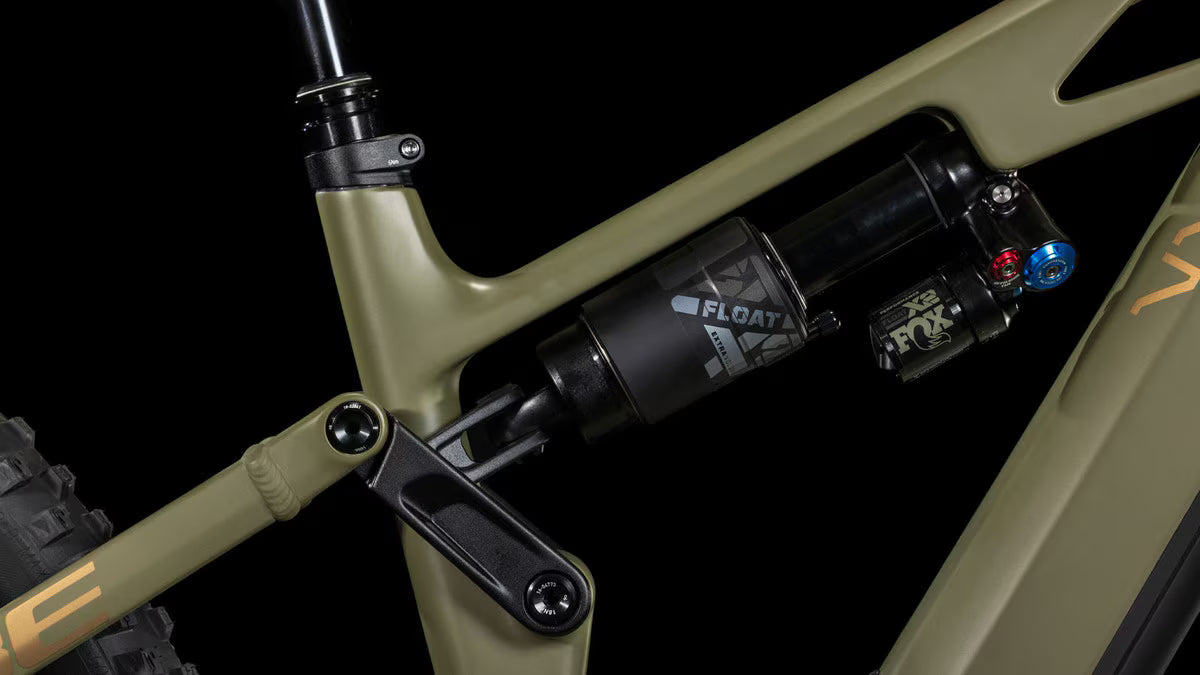

SHOCK Fox Float X2 Performance, 230x65mm, Low Speed Rebound & Compression w/ 2-Position Lever
TYRES F: Schwalbe Magic Mary, Addix Soft, Super Trail, Kevlar, 2.4 | R: Schwalbe Tacky Chan, Addix Soft, Super Gravity, Kevlar, 2.4
WEIGHT 24.3 kg
FEATURES
Fox 38 Float GRIP fork with 170mm travel
Fox Float X2 Performance shock
Sram GX Eagle AXS 12-speed drivetrain
Bosch Performance Line CX motor
Advanced carbon frame
MOTOR/DRIVE UNIT Bosch Drive Unit Performance Line CX, Smart System 25KPH
MOTOR BRAND Bosch
MOTOR MODEL Performance Line CX
MOTOR POWER (WATTS) 250
MOTOR TORQUE (NM) 85
BATTERY Bosch PowerTube 800
BATTERY BRAND Bosch
BATTERY MODEL PowerTube 800
BATTERY SIZE (WATT-HOURS) 800
EBIKE DRIVE SYSTEM Mid Drive
DISPLAY Bosch Display
